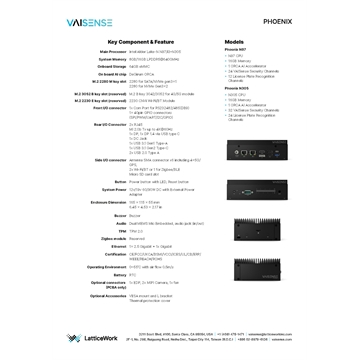

VAISense Phoenix
Key Component & Feature
- Main Processor : Intel Alder Lake-N N97/i3-N305
- System Memory : 16GB LPDDR5@6400MHz
- Onboard Storage : 64GB eMMC
- On board AI chip : DeGirum ORCA
- M.2 2280 M key slot : 2280 for SATA/NVMe gen3x1
2280 for NVMe Gen3x2
- M.2 3042/3052 B key slot (reserved) : M.2 B key 3042/3052 for 4G/5G module
- M.2 2230 E key slot (reserved) : 2230 CNVi Wi-Fi/BT Module
- Front I/O connector : 1x Com Port for RS232/482/485(DB9)
1x 40pin GPIO connectors
(SPI/PWM/UART/I2C/GPIO)
- Rear I/O Connector : 2x RJ45
HDMI 2.0b Tx up to 4K@60Hz
1x DP, 1x DP 1.4 via USB type C
1x DC Jack
1x USB 3.1 Gen1 Type-A
1x USB 3.1 Gen2 Type-C
2x USB 2.0 Type A
- Side I/O connector : Antenna SMA connector x6 including 4x5G/GPS,
2x Wi-Fi/BT or 1 for Zigbee/BLE
Micro SD card slot
- Button : Power button with LED, Reset button
- System Power : 12v/19v 60/90W DC with External Power Adapter
- Enclosure Dimension : 165 x 115 x 55 mm
6.45 x 4.53 x 2.17 in
- Buzzer : Buzzer
- Audio : Dual MEMS Mic Embedded, audio jack (in/out)
- TPM : TPM 2.0
- Zigbee module : Reserved
- Ethernet : 1x 2.5 Gigabit + 1x Gigabit
- Certification : CE/FCC/UKCA/BSMI/VCCI/ICES/UL/CB/ERP/WEEE/REACH/ROHS
- Operating Environment : 0~55’C with air flow 0.5m/s
- Battery : RTC
- Optional connectors(PCBA only) :1x EDP, 2x MIPI Camera, 1x fan
- Optional Accessories : VESA mount and L bracket
Thermal protection cover
Models
Phoenix N97
- N97 CPU
- 16GB Memory
- 1 ORCA AI Acccelerator
- 24 VAISense Security Channels
- 12 License Plate Recognition Channels
Phoenix N305
- N305 CPU
- 16GB Memory
- 1 ORCA AI Acccelerator
- 32 VAISense Security Channels
- 24 License Plate Recognition Channels
